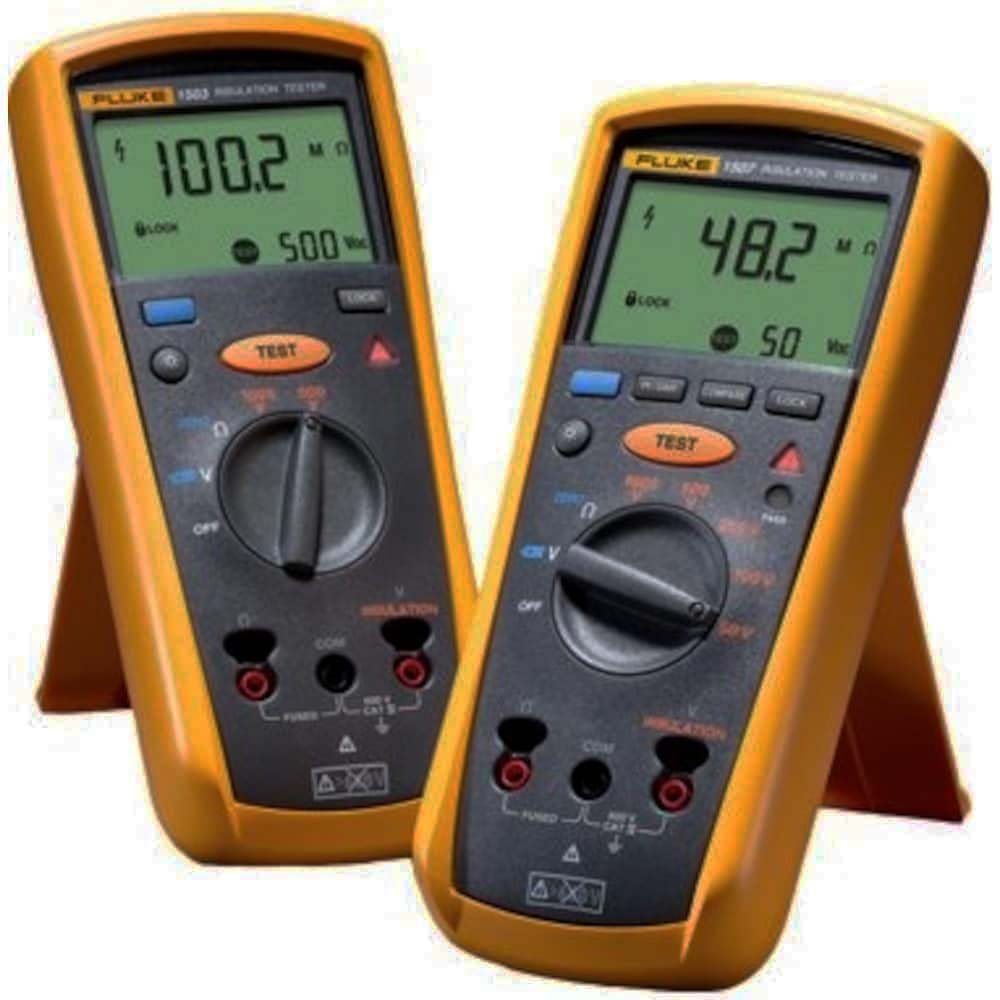

Fluke 1507 Insulation Resistance Tester

The Fluke 1507 Insulation Resistance Tester stands out because of its enormous measurement range from 0.01MΩ to 10GΩ. Five different test voltages of 50V, 100V, 250V, 500V and 1000V allow a great deal of choice for the user whilst usability is further bolstered by a range of advanced features. Most notably, AC/DC voltage measurement up to 600V and earth bond resistance measurement add important extra options to the principal use of insulation testing.

Polarisation index and dielectric absorption ratio are automatically calculated by the Fluke 1507, thus saving time, and the 'compare' function means that repetitive tests are streamlined via a pass/fail function. Furthermore, a remote probe brings greater access to awkward test locations as well as making measurement repetition easier and simpler.

Test results are displayed on the Fluke 1507’s backlit digital screen whilst pass/fail and dangerous voltage indications are shown in the form of LED lights. The user benefits from simple dial operation and a large ‘test’ button which is easy to press when wearing gloves.

The Fluke 1507 is an extremely safe instrument thanks to its automatic voltage detection which prevents tests when a voltage of 30V or over is detected. The inputs are safety rated as Cat IV up to 600V so the user can have confidence when operating the instrument.

The product comes supplied with test leads, probe tips and crocodile clips. Overall, the Fluke 1507 constitutes a sophisticated, safe insulation tester with impressive measurement capabilities.

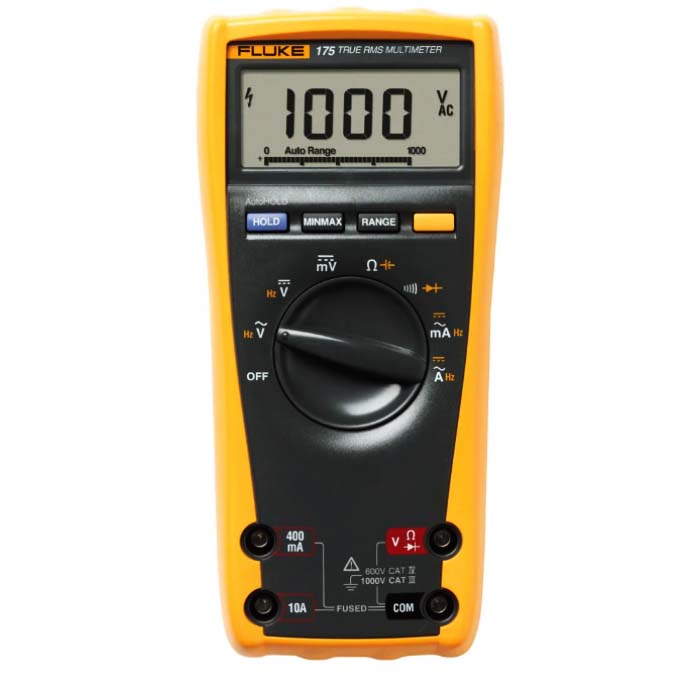

Fluke true-rms Multimeter 175

The Fluke 175 True RMS Multimeter is an advanced, accurate multimeter that provides the user with precise measurements for a number of electrical variables including AC/DC voltage (1000V), AC/DC current (10A), resistance (50MΩ), capacitance (9999µF), and frequency (99.99kHz). The 175 can also be used for continuity and diode testing whilst a wide array of ranges and resolutions for each parameter - including mA and mV - allow for precise readings during inspections.

True RMS measurement for AC values means they are more representative of real-world outputs and the options of auto and manual ranging save time but still allow the user to customise the reading. A quick response time helps save time and pick up the small fluctuations in values during measurements.

Readings are shown on the Fluke 175’s 6000-count display and the user benefits from both data hold and auto hold which keeps stable readings on screen until another stable value is available. Furthermore, min/max/avg recording contributes to a comprehensive picture of system performance via the Fluke 175.

The Fluke 175 gives a visual warning of dangerous voltage levels on screen and also reminds the user to check the test lead inputs when the dial is changed so it is a safe instrument to use. The inputs are rated as Cat III up to 1000V and Cat IV up to 600V.

Simple dial and push button operation means that the Fluke 175 is easy to use and the lightweight design and probe storage slots means that it is easy to transport. Test leads and a 9V battery come supplied with the product as standard.

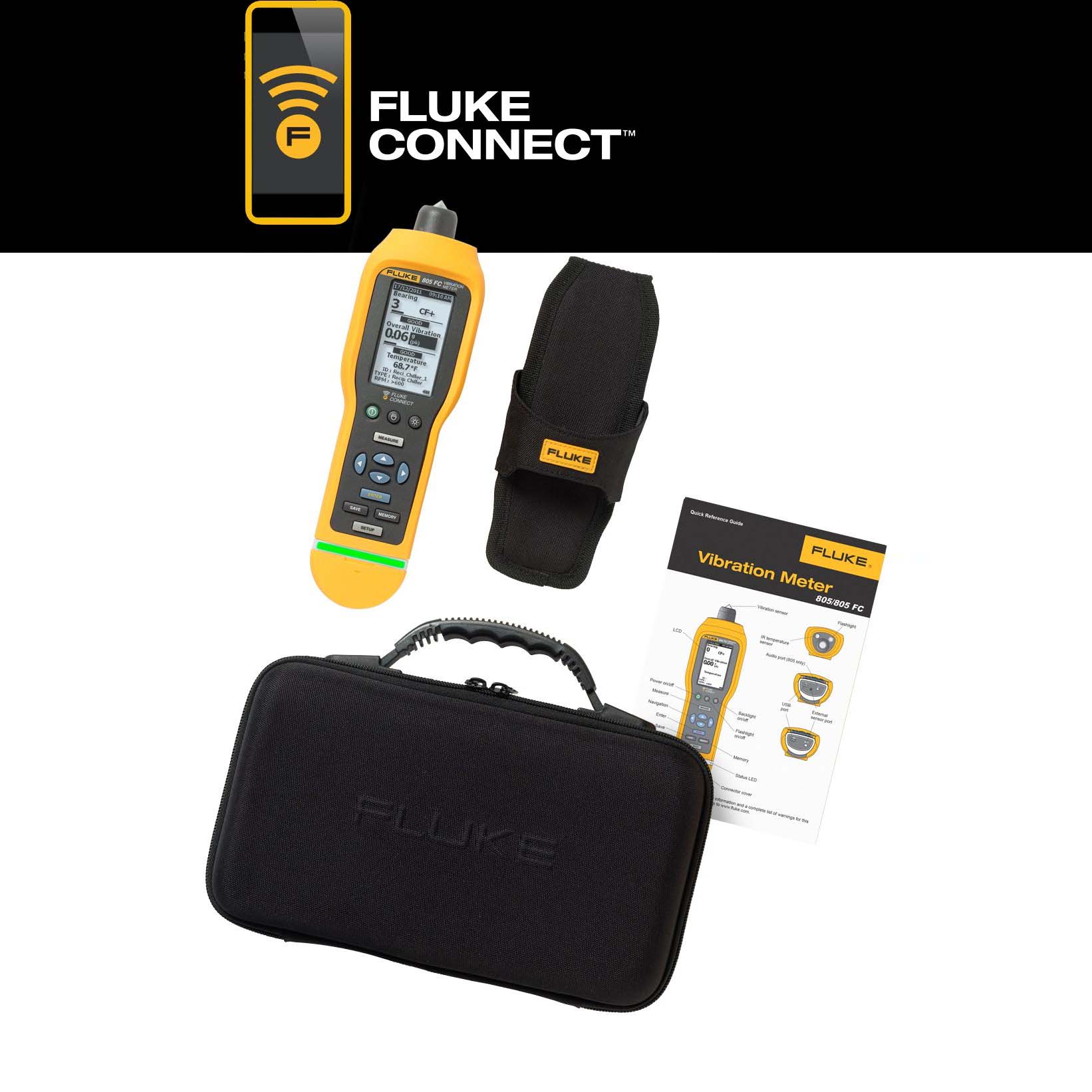

Fluke 805 FC Vibration Meter

The Fluke 805 FC Vibration Meter is a handheld meter that provides reliable vibration screening fir mechanical troubleshooting capable of reputable, severity scaled readings of the overall vibration and bearing condition. The 805 measures the overall vibration as well as specific variables including bearing conditions and temperatures providing the user with a more complete picture of what is happening. The 805 provides consistent data quality at both low (10Hz to 1,000Hz) and high (4,000Hz to 20,000Hz) frequency.

Featuring an innovative sensor design, the Fluke 805 minimises the measurement variations caused by device angle or contract pressure. The Fluke 805 provides users with a fault severity scale with four severity levels allowing for prioritisation of maintenance work and bearing conditions. The easy to use user interface minimises the user input to RPM and equipment type

Crest Factor +

Fluke uses a proprietary algorithm known as Crest Factor + which values range between 1 to 16. As a bearing condition worsens the Crest Factor + value increases. The four step severity scale identifies the bearing health as Good, Satisfactory, Unsatisfactory or Unacceptable.

The Fluke 805 uses a coloured lighting system of green and red alongside on screen comments to indicate to the user how much pressure is needed to be applied for measurements to be taken. The incorporated Spot IR Sensor increases the diagnostic capabilities

The 805 Vibration Meter has an IP54 rating offering protection from water and dust ingress and is drop tested up to 1m. The incorporated flashlight further adds to the 805's use in dark environments. Powered by two AA batteries, the user is able to obtain 250 measurements before the batteries need replacing.

Export and Trend in Microsoft® Excel

The Fluke 805 stores up to 3,500 measurements on the on board memory. Each measurement can be further analysed on a PC using Microsoft® Excel with the data transferred via USB.

Using the pre built Microsoft® Excel templates and plot graphs users can track machines health over time in order to trend bearing parameters such as overall vibration, CF+ and temperature. Viewing the trend patterns allows for abnormalities to be spotted and user can have a clear picture of changing bearing condition and deterioration of a machine

Machine Categories the Fluke 805 can measure

• Chiller (refrigeration): including reciprocating open motor and compressor separately, reciprocating hermetic motor and compressor and centrifugal hermetic or open motor.
• Fans: belt driven fans 600 to 1799 RPM and 1800 to 3600RPM, general direct drive fans (direct coupled), vacuum blowers (belt or direct drive), large forced draft fans (fluid film brgs), large induced draft fans (fluid film brgs), shaft mounted internal fan (extended motor shaft) and axial flow fans (belt or direct drive)
• Cooling tower drives: long, hollow drive shaft (motor), belt drive (motor and fan all arrangements) and belt and direct drive (motor and fan- all arrangements)
• Centrifugal pumps: Vertical pumps 0' to 5 height, 5' to 8' height, 8' to 12' height and 12' to 20' height. Horizontal centrifugal end suction pumps- direct coupled, horizontal centrifugal double suction pumps- direct coupled and boiler feed pumps (turbine or motor driven)
• Positive Displacement Pumps: positive displacement horizontal piston pumps (under load) and positive displacement horizontal gear pumps (under load)
• Air compressors: Reciprocating, rotary screw, centrifugal with or without external gearbox, centrifugal – internal gear (axial meas.) and centrifugal – internal gear (radial meas.)
• Blowers: Lobe-type rotary blowers (belt or direct drive) and multi stage centrifugal blowers (direct drive)
• Generic gearboxes (rolling element bearings): single stage gearbox
• Machine tools: motor, gearbox input and output and spindles (roughing operations, machine finishing and critical finishing)

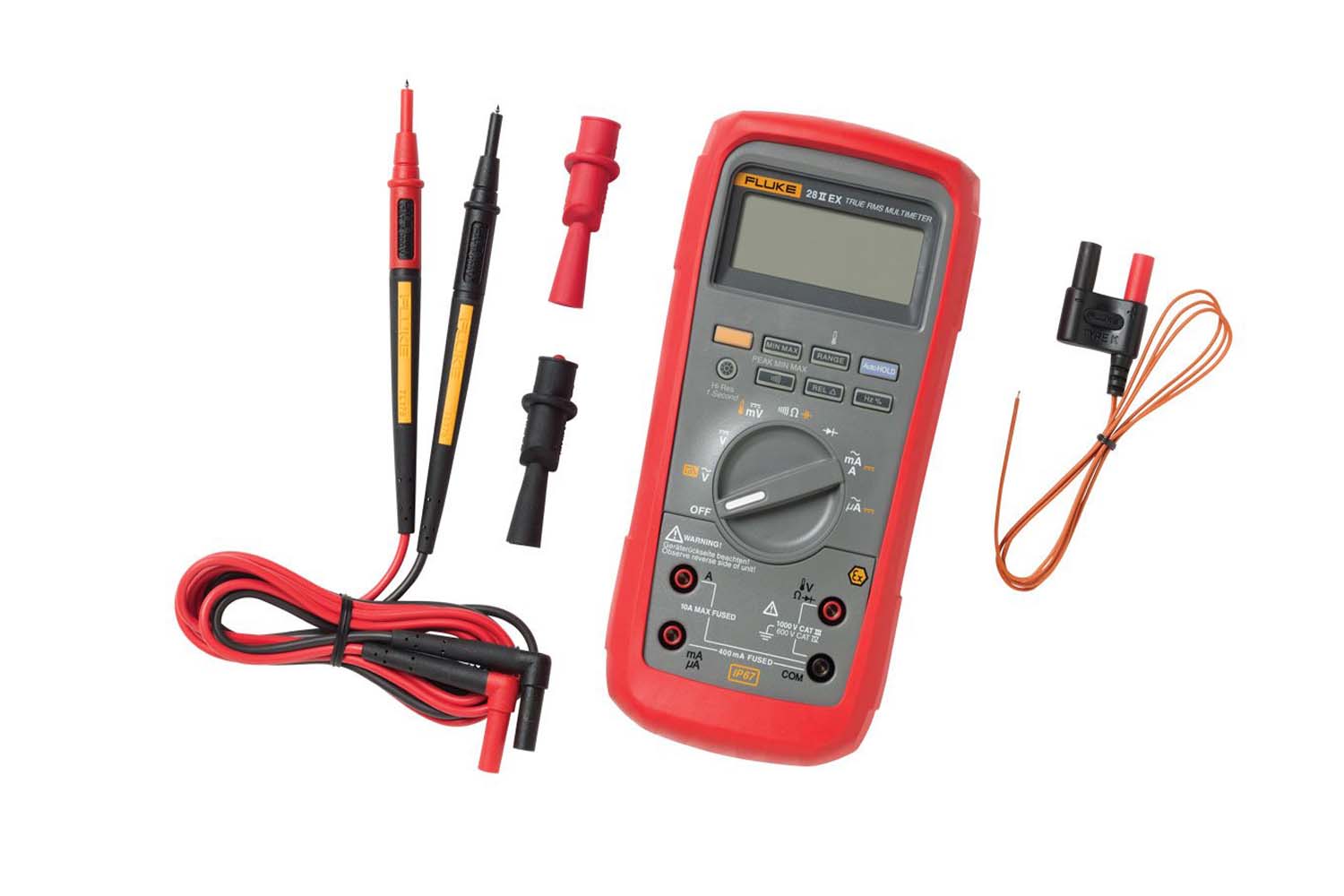

Fluke 28 II Ex IP67 Intrinsically Safe Industrial Multimeter

The Fluke 28 II Ex Intrinsically Safe Industrial Multimeter is a sturdy industrial multimeter that is suitable for use in environments with potential explosion risks, for example, the oil and gas sector, pharmaceuticals and food factories as its ATEX ‘intrinsically safe’ approval certifies that it is incapable of releasing enough energy to form a spark and cause an explosion. It is suitable for IIC (gas), Zone 1 and 2 and IIIC (dust), and Zone 21 and 22.

The Fluke 28 II Ex boasts the capability to assess an impressive array of parameters including AC/DC voltage (1000V), AC/DC current (10A), resistance (50MΩ), conductance (60.00nS), duty cycle (99.9%), capacitance (9999µF), frequency (1999.99kHz), and temperature (-200˚C to 1090˚C).

Diode testing is also possible with the Fluke 28 II Ex whilst True RMS measurement for AC readings safeguards accuracy. Peak capture helps provide a really clear picture for the user. Options for auto and manual ranging provide further choice whilst relative mode compensates for test lead resistance. High resolution measurement allows testing of specialist equipment such as flame detectors and thermistors.

The backlit screen can be switched between 6000 and 20,000 counts and also has a bar graph display, auto hold, and min/max/avg data recording whilst the simple operation of the Fluke 28 II Ex makes it simple to use, especially useful in tricky conditions.

The Fluke 28 II Ex is IP67 rated for outdoor use and also has an extended operating temperature range of -15˚C to 55˚C. It can even operate down at -40˚C for a short period of 20 minutes. The resilient plastic holster can absorb a fall of up to 3m and the user can be sure that the device will stand up to the challenges of field use.

The inputs of the Fluke 28 II Ex are rated as Cat III to 1000V and Cat IV to 600V whilst a visual warning tells the user if the wrong inputs are engaged. The user also benefits from illuminated buttons, a long battery life and a supplied accessories that include crocodile clips, test leads and test probes.

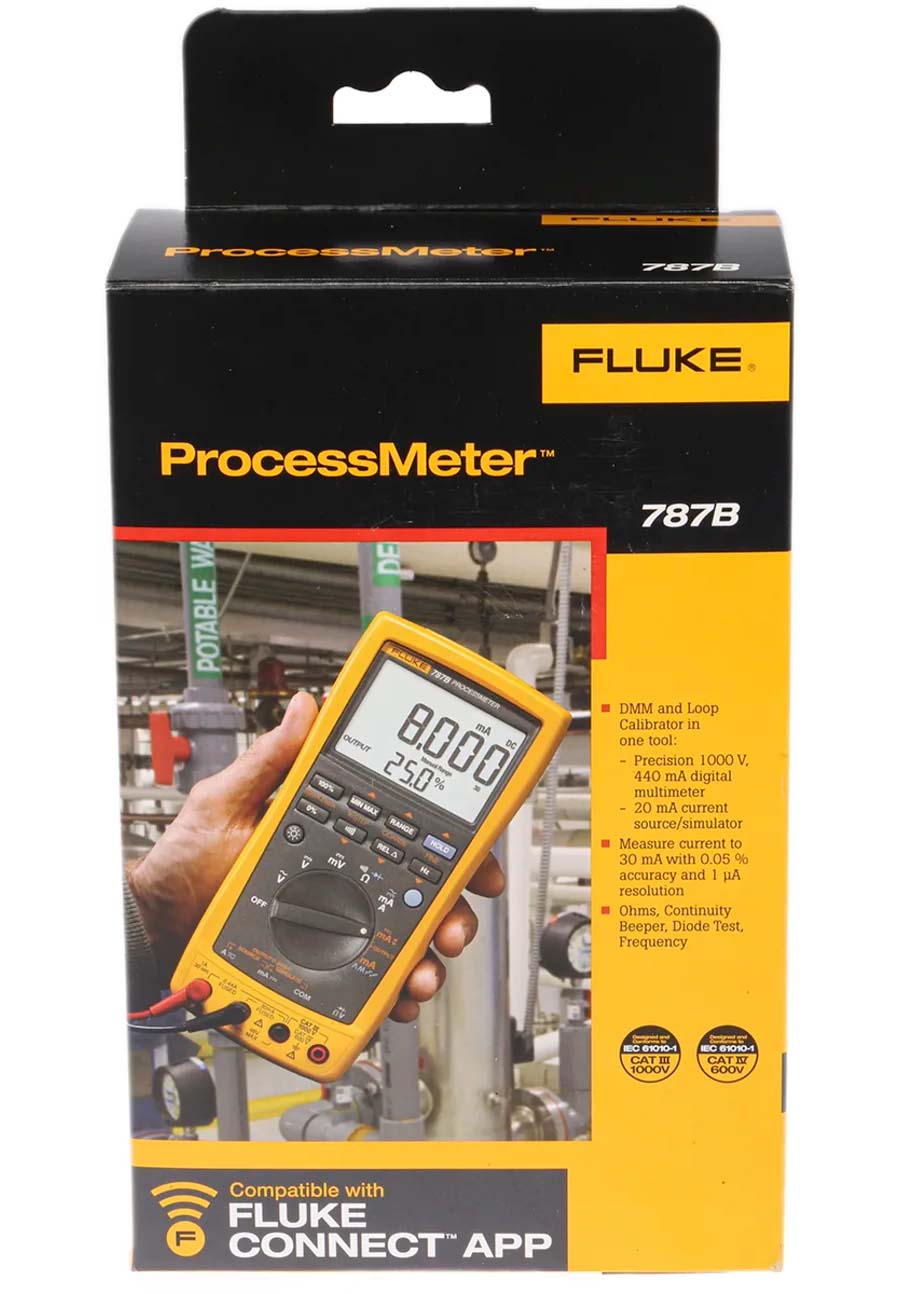

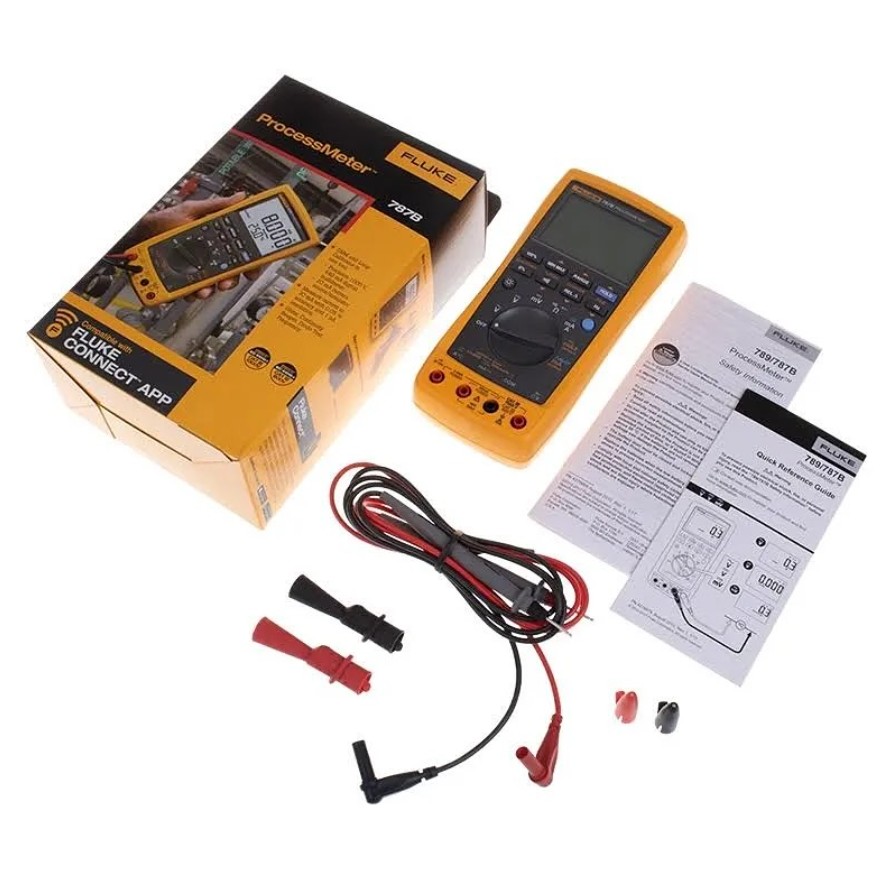

Fluke 787B ProcessMeter™

The Fluke 787B cleverly amalgamates the functions of both a digital multimeter and a mA loop calibrator, thereby permitting comprehensive electrical inspections alongside accurate loop calibration. It can measure current up to 1A, voltage up to 1000V, resistance up 40MΩ, frequency up to 20kHz and also performs continuity and diode testing. True RMS measurement makes AC readings more accurate and the 787 boasts min/max/avg recording as well as display hold. To save time but still provide flexibility, the user can choose between automatic and manual ranging whilst relative mode permits compensation for test lead resistance amongst other uses.

From a loop calibration perspective, the Fluke 787B can source and simulate current between 4 and 20mA with an accuracy of ±0.05% and a precision of 0.001mA so it is suitable for most loop calibration functions. Different sourcing options are available with automatic slow ramp, fast ramp, manual coarse/fine/25% step and auto step. Readings are given in both milliamps and as a percentage for a comprehensive picture of loop performance.

Results for electrical measurement and loop calibration are shown on the Fluke 787B's clear, backlit screen. Operating the instrument is very easy despite the many different functions because of the clear rotating dial and simple on-screen symbols. The Cat III safety rating up to 1000V ensures that the user can have confidence in the device and it comes supplied with test leads, crocodile clips, test probes, and a rubber holster with an integrated stand. Overall, the Fluke 787B neatly combines accurate loop calibration capability with handy electrical measurement functions.

Fluke 87V TRMS Industrial Multimeter

The Fluke 87V TRMS Industrial Multimeter has the capacity to measure a vast range of variables to a high degree of accuracy throughout all stages of the manufacturing process. With a ±0.05% accuracy for DC voltages over large ranges, this unit can capture readings for AC/DC voltage (1000V), AC/DC current (10A), resistance (50MΩ), capacitance (9999µF), frequency (200kHz), duty cycle (99.99%), temperature (-200.0˚C to +1090˚C) and conductance (60nS). The 87V can also correctly measure pulse-width modulated motor drive signals and includes both diode & continuity testing functions. These measurement functions and troubleshooting features are extremely efficient tools even in loud, busy or high-altitude locations thanks to incorporated special shielding. The 87V is suitable for a whole host of applications:

• Plant engineers
• Application engineers
• Electrical engineers
• Plant automation
• Power distribution
• Electro-mechanical equipment
• Industrial electronics
• Industrial electricians (Working with VSD’s)
• Installing or repairing, adjustable speed motor drives

Remove the guesswork from drive system troubleshooting with the 87V TRMS Multimeter. Alongside measuring current, voltage and frequency on complex variable frequency drive (VFD) signals, this unit also features True-RMS for measuring non-linear signals. Other advanced options such as the built-in thermometer and temperature probe are specifically designed to make inspections quicker and easier.

The rugged build of the Fluke 87V is safety rated CAT III 1000 V and CAT IV 600 V. This portable, handheld unit is battery powered and includes a large 4.5 digit display with built-in backlight. A rubber boot protects the Multimeter from harsh on-site conditions while the model itself can be propped-up via the tilt-leg set into the back of the casing. Supplied with TL175 test leads, AC175 alligator clips and a 80BK temperature probe this sophisticated unit is ideal for any kit venturing into an industrial setting.

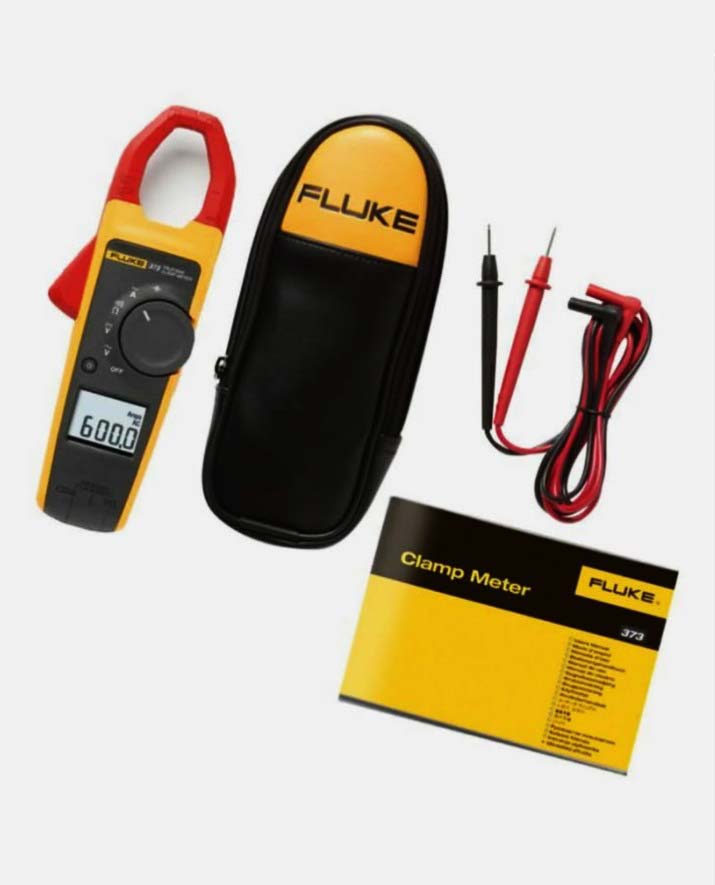

Fluke 373 True-RMS AC Clamp Meter

Fluke 373 True RMS AC Clamp Meter does the job for any AC-only current measurement application

Fluke 373 True-RMS AC Clamp Meter is a great choice for AC-only current measurement situations. Featuring True RMS AC voltage and current measurements you can measure AC current to 600 A and AC voltage to 600V. The 373 also measures DC voltage to 600 V and resistance to 6000 Ω.

To make it even easier to use, the large, easy-to-read backlit display provides better visibility in dimly lit conditions. And the 373 automatically sets the correct measurement range based on the voltage present when you power up, so you do not need to move the switch while taking a measurement. When you put it all together, you’ll find the Fluke 373 offers everything you need, plus a little more.

Other useful capabilities:

• Provides True-RMS voltage and current measurements to accurately measure non-linear signals
• Automatically selects a measurement range based on voltage present so you don’t need to change the switch positions while taking a measurement
• Presents readings on a large, easy-to-read backlit display
• Features CAT IV 300 V, CAT III 600 V safety ratings
• Comes with a soft carrying case and three-year warranty
• Runs on two AA alkaline batteries

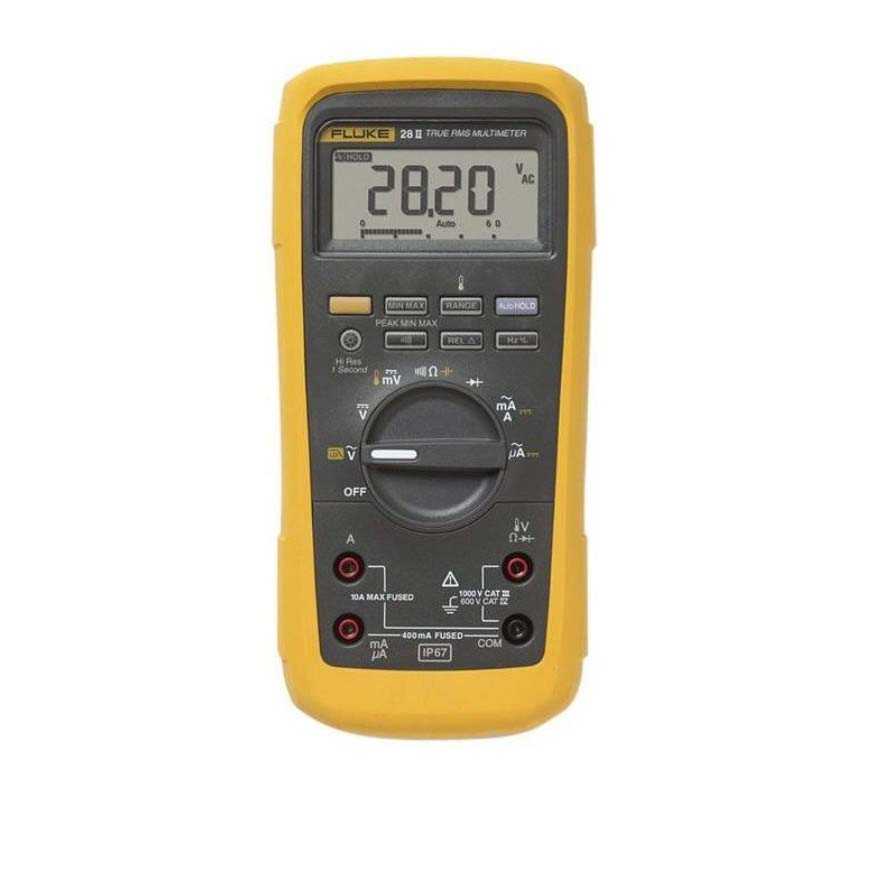

Fluke 28 II IP67 Industrial Multimeter

With an IP67 rating, the Fluke 28 II Digital Multimeter is designed for outdoor use and can withstand a drop of up to 3m. It measures a range of electrical variables including AC/DC voltage (1000V), AC/DC current (10A), resistance (50MΩ), capacitance (9999µF), and frequency (199.99kHz). Furthermore, the 28 II can measure temperature between -200˚C and +1090˚C and these parameters can be measured to very high resolutions such as 0.1µA and 0.1Ω which allow inspections of flame detectors, thermistors, and more.

True RMS measurement aids accuracy when measuring non-linear outputs and a low pass filter combines with a unique measurement technique for accurately assessing ‘noisy’ electrical systems like motor drives. The relative mode removes test lead resistance from the equation for low resistance measurement and, finally, the Fluke 28 II can be used for diode and continuity testing.

The sturdy design of the Fluke 28 II means it is suitable for the most challenging of industrial environments. In addition to its IP67 weatherproof rating, the device is MSHA-approved and has a wide operating temperature range of -15˚C to +55˚C (-40˚C for 20 mins max./ operating humidity of 95%). The input safety ratings of Cat III to 1000V and Cat IV to 600V provide further testimony to the 28 II’s usability in potentially hazardous settings. It can even withstand volt spikes up to 8000V in case of faults or load switching on heavy-duty circuits.

All results are shown on the Fluke 28 II’s high resolution screen which has a backlight for use in the dark, as do the push button controls. The device is capable of min/max/avg recording as well as peak hold and AutoHold to provide a comprehensive picture of system performance.

The Fluke 28 II is the ideal multimeter for working in challenging environments and comes provided with a type K thermocouple, test probes, test leads and crocodile clips.

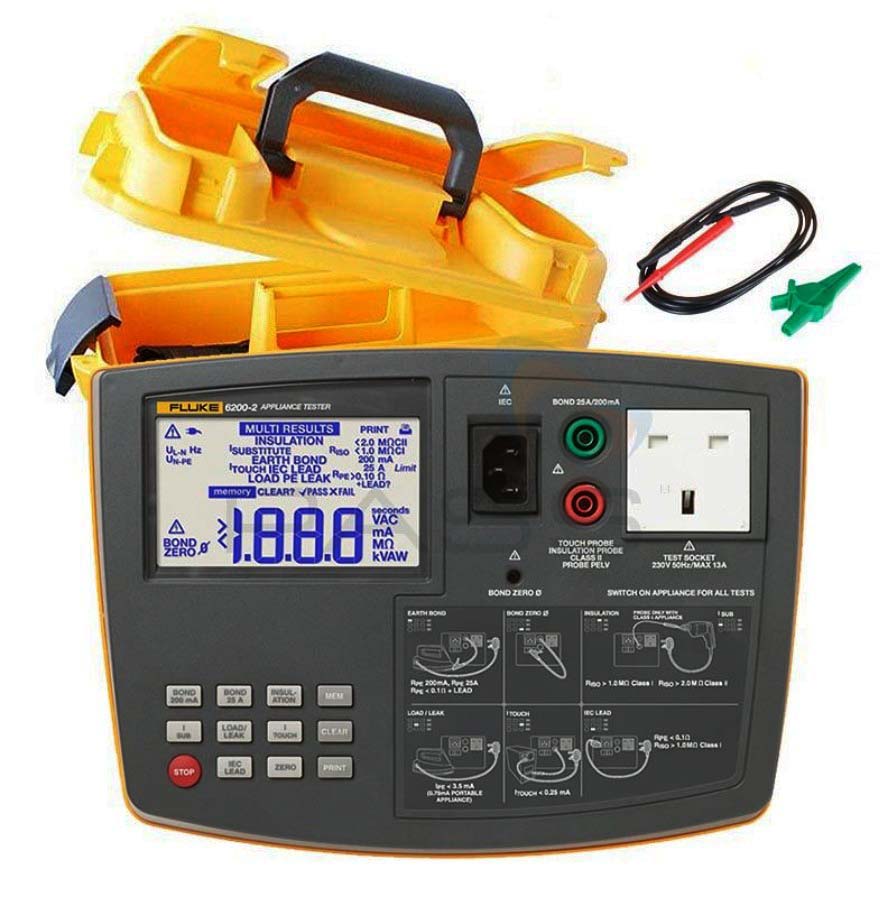

Fluke 6200-2 PAT Tester

The Fluke 6200-2 PAT Tester is a reliable, portable PAT tester that stands out because of its simple, speedy operation. It is suitable for performing tests on all 230V appliances and all relevant PAT tests can be carried out on this instrument. There are inputs for running bond 25A and 200mA tests - the latter are suitable for testing IT equipment - as well as an IEC socket for testing mains and extension leads. Insulation testing constitutes another useful PAT function.

There is one dedicated button for each test on the Fluke 6200-2 and just one mains socket for testing appliances so there is no need to frequently swap plugs over, especially when employing the automatic test sequences. Furthermore, pre-set limits allow the device to indicate a pass/fail for every test without the need for manual adjustment. This means that more tests can be carried out over the course of a day without harming accuracy.

Results are shown on the large, bright display and also saved in the device’s internal memory. The Fluke 6200-2 is a manual PAT tester so data cannot be transferred directly to a computer, but can be recalled on the device’s screen or printed via a Fluke SP6000 mini-printer connected via the USB port.

The Fluke 6200-2 weighs just 3kg and has an integrated handle for ease of transport. It is a solid, sturdy instrument and can cope with the wear and tear of daily use. It is very safe with a Cat III 300V rating for EN61010-1. Test leads are included as standard alongside a test probe, a crocodile clip, three IEC adapters, and a mains cord, all of which comes in a large, hard carry case.

Fluke part number: FLUKE 6200-2 UK

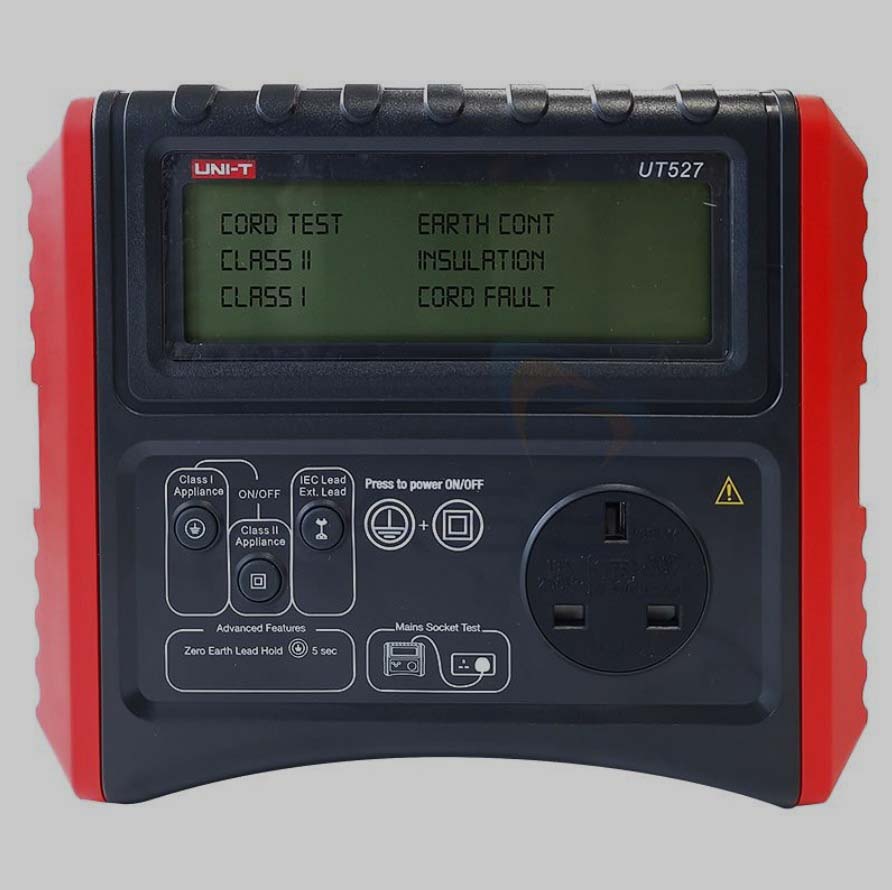

UNI-T UT527 PAT Tester - 5th Edition Compliant

New to PAT testing, or just looking for a simple tester that does everything you need? You've just found it - this is the UNI-T UT527, possibly our most popular PAT tester and an absolute essential for those new to the industy, particularly suited for use in charity shops, smaller offices, for use by landlords and anyone else who PAT tests a small amount of appliances.

The UNI-T UT527 is designed completely with simplicity in mind. Testing with this PAT tester is literally as simple as connecting up the supplied leads to the appliance you're testing, then pressing a button on the front. The UT527 will then perform all needed tests and display a PASS/FAIL result on the large-size LCD screen (please note that this tester does not show full test results and will only show PASS/FAIL).

You can use the UT527 to test all appliances. This unit is perfectly suitable for use on both class I and II appliances commonly found in offices etc, can be used safely with IT equipment and can even be used for testing 110V appliances as found on construction sites etc (requires optional 110V adapters). It's also suitable for use with power leads and can - via the use of IEC adapters etc - be used to test cloverleaf and other power leads commonly found on laptop power supplies and similar equipment.

The UT527 performs all basic PAT tests required by the IET Code of Practice and is 5th Edition Compliant, including insulation resistance at 250V; giving more control over testing sensitive equipment or surge protected equipment, earth continuity, socket tests and more.

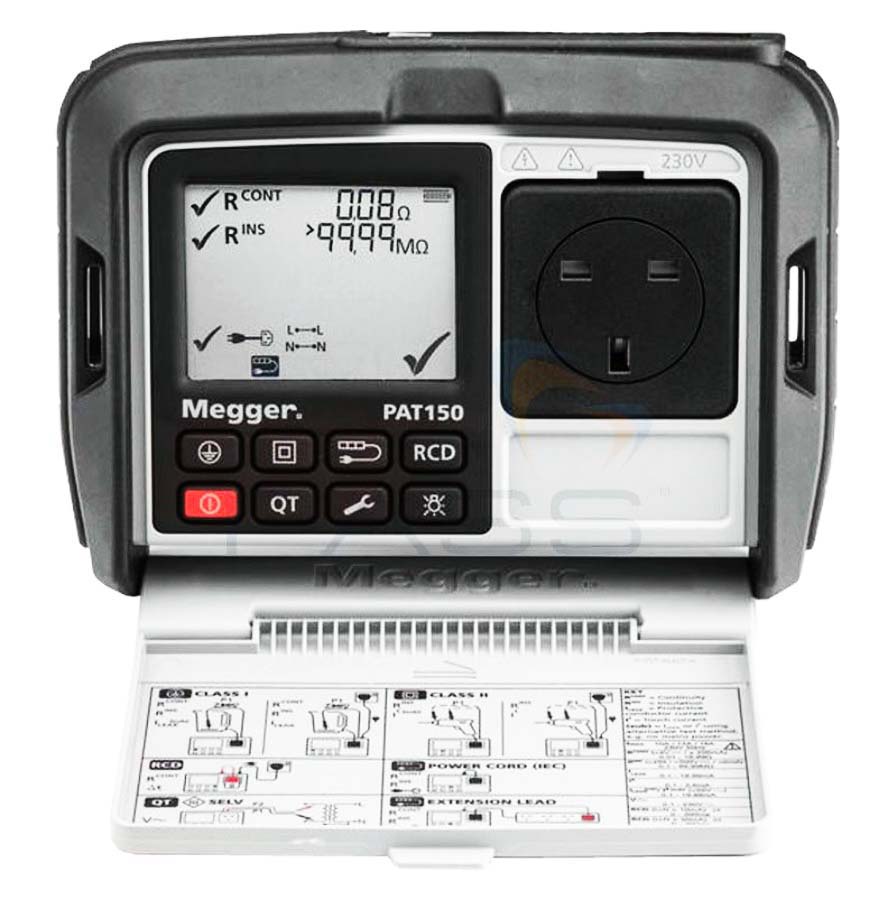

Megger PAT150 Handheld Portable Appliance Tester

Offering straight-forward, reliable and efficient appliance safety testing for portable and fixed electrical equipment, the Megger PAT150 PAT Tester is ideal for use in most environments with a low to moderate PAT testing requirement and enables you to carry out PAT testing in full compliance with the IET Code of Practice.

With additional mains powered tests available such as earth leakage testing, touch current testing and portable RCD testing, as well as test sequences for Class I, Class II appliances and extension leads, the Megger PAT150 Tester also carries out earth continuity testing at 200mA, insulation testing at either 250V or 500V and substitute leakage testing.

Additionally the Megger PAT150 provides a separate test for SELV (Safety Extra Low Voltage or Class III) appliances.

With adjustable PASS limits and user-configurable test durations, the Megger PAT150 can also null Bond lead resistance to reduce measurement errors, making it an incredibly versatile non-downloading PAT Tester.

Live circuit measurement is also available for testing the mains supply and socket polarity or electrical circuit voltage to 300V (AC).

Encased in rugged rubber armour and fitted with toughened “Gorilla” glass, the Megger PAT150 is incredibly durable and its battery powered operation makes it ideal for those locations where an electrical supply isn’t available or where a mains powered PAT tester would prove impractical.

The Megger PAT150R PAT Tester is also available which has an inbuilt battery charger, preventing the need to remove the AA batteries from the tester to recharge them externally. To purchase this model, simply select the option above.

Megger Part Number: 1003-064 / 1003-428 (rechargable model)
